Vanguard Vent Free Gas Log Heaters

Vanguard Vent Free Multi Sided Gas Logs

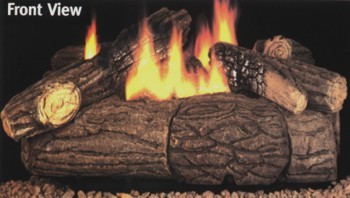

The new multi-sided vent-free gas log heaters are designed for use in a see through, peninsula or island fireplace. This log set is equally beautiful when viewed from any angle. The unique burner provides an active, random yellow flame pattern and generous heat. The new low profile design lowers the logs closer to the fireplace floor, completely hiding controls, tubes, valves and sheet metal.

They are available as Remote Control "Ready" which gives you the option of four types of remote control accessories as well as the ability to operate the log heater in the variable manual control mode.

Control Options

Hand Held Remote Control Ready Models:

Can be operated with the optional hand held remote or built-in manual control with a push button ignition on the log set. The operator may use the hand held remote to select a thermostat comfort setting (if applicable) or turn the log heater on and off.

Minimum Firebox Dimensions

Log Size	Minimum Height	Minimum Depth	Yellow Flame Models Front Width	Yellow Flame Models Rear Width (At 13" Depth)
27"	17"	19"	32"	32"

Vanguard Multi Sided Remote Control Ready Models

Model	Description	Shipping Weight
VYM27NR	27" Natural Gas Log Set 20,000-39,000 BTUs	40 lbs.
VYM27PR	27" Propane Log Set 20,000-39,000 BTUs	40 lbs.

Optional Remote Control Accessories

Model	Description
HRC101 Use Replacement 1001-A	On/Off Hand Held Remote
HRC201 Use Replacement 1001TH-H	Thermostat Hand Held Remote
GWMS2	Wall Mount On/Off Switch Kit
GWMT1	Thermostat Wall Switch

Accessories For Remote Control Ready Log Sets

Model	Description	Shipping Weight
GA6050	Flat Black Fireplace Hood	6 lbs.
GA6052	Polished Brass Fireplace Hood	6 lbs.
GA6053	Antique Brass Fireplace Hood	6 lbs.

Important Heater Information

Installation must be done by qualified service persons.
Read Owner's Manual before using.
Not for use in recreational vehicles.
All products approved for manufactured (mobile) home installation.
We reserve the right to amend product specifications without notice.
Use with adequate air (ventilation) only. Humidifies while it heats.
Provides water vapor in the area heated. Refer to owner's manual for specifics.
Heating areas based on rooms with 8" ceilings.
Operating heater at elevations above 4,500 ft. could cause nuisance outages.

Is Vent-Free Gas Heating Right For Me?
Product cannot be converted between fuel types.
All accessories have a one year warranty.
ANSI Z21 11.2 Standard and National Fuel Gas Code revised in 1994 to permit wall mounted installations of vent-free gas heaters of 10,000 Btu or less in bedrooms and 6,000 Btu or less in Bathrooms. As always check local codes
