Vanguard Vented Firewerks Absolute Gas Log Heaters
Vanguard have a unique "ramp" design for intense glow with beautifully crafted ceramic fiber logs
- Fully "unitized" costruction: burner, logs, and controls shipped fully assembled
- Unitized design prevents inappropriate log placement for truly plug & play installation
- No Sooting on logs
- ODS pilot for extra safety assurance
- Perfect for converting a wood burning fireplace to a gas burning fireplace
- All units are remote "ready"
|
|
|
|

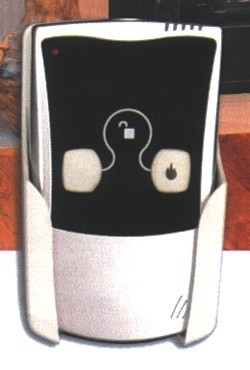

Hand Held Remote Control
Ready
Models:
|
Can
be operated with the optional hand held remote or built-in manual
control with a push button ignition on the log set. The operator may
use the hand held remote to select a thermostat comfort setting (if
applicable) or turn the log heater on and off.
|
|
|
|
|
Minimum Firebox Dimensions
|
|
|
|
|
Log
Size
|
Minimum
Height
|
Minimum
Depth
|
Yellow Flame Models Front Width
(Add 6" if safety pilot/valve is used)
|
Yellow Flame Models Rear Width (At depth indicated)
|
18" | 18" | 14" | 28" | 16" |
24" | 18" | 15.5" | 29.75" | 17" |
|
|
|
|
Firewerks Vented Gas Log Set Heaters For Wood Burning Fireplaces
|
|
|
|
|
Model | Log
Size
| Gas
Type
| Btu Input
|
VTDMV18NA |
18"
|
Natural
Gas
|
36,000-53,000 |
VTDMV18PA | 18"
| Propane | 35,000-45,000 |
VTDMV24NA | 24"
| Natural
Gas | 36,000-53,000 |
VTDMV24PA | 24"
| Propane | 35,000-45,000 |
|
|
|
|
Optional Remote Control Accessories
|
|
|
|
|
|
|
|
|
Important Heater Information |
|
|
|
|
- Installation must be done by
qualified
service persons.
- Read Owner's Manual before using.
- Not for use in recreational
vehicles.
- All products approved for
manufactured
(mobile) home installation.
- We reserve the right to amend
product
specifications without
notice.
- Use with adequate air (ventilation)
only. Humidifies while
it heats.
- Provides water vapor in the area
heated. Refer to owner's
manual for specifics.
- Heating areas based on rooms with
8'
ceilings.
|
- Operating heater at elevations
above
4,500 ft. could cause
nuisance outages.
- Vent Free product cannot be converted between
fuel types.
- ANSI Z21 11.2 Standard and National
Fuel Gas Code revised
in 1994 to permit wall mounted installations of vent-free gas heaters
of
10,000 Btu or less in bedrooms and 6,000 Btu or less in Bathrooms. As
always
check local codes
|
|
|
|
|
